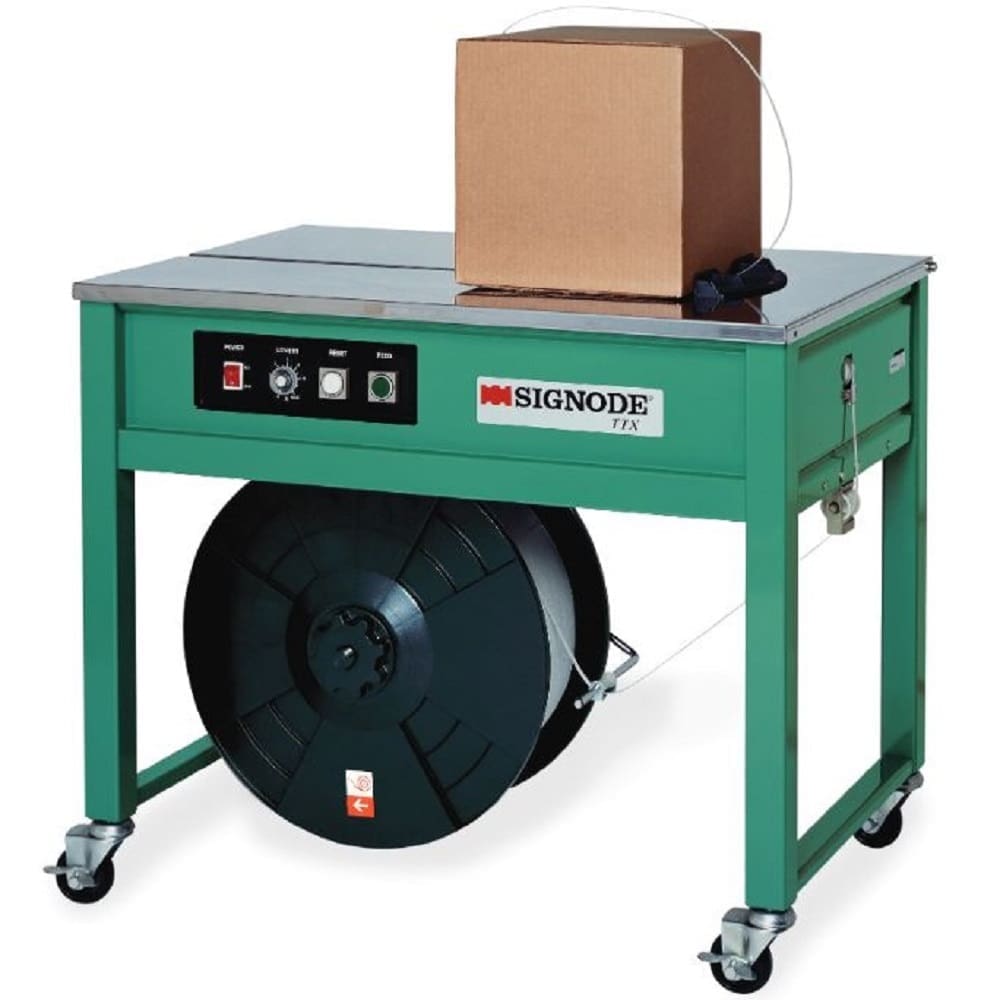

Signode® TTX Semi-Automatic Plastic Strapping Machine

Manufacturer #: TTX SKU: 20027 contact us for a quote

Add item to your cart; click « VIEW CART » then click « SUBMIT A QUOTE REQUEST »
or call 1.888.333.1929


Economical, Open Cabinet, Bottom Seal Model

  • This semi-automatic machine is on wheels so it may be moved quickly from one task to another.
  • The TTX machine uses a simplified strapping head. Feed, retract and tension are all cam operated.
  • Features a welded steel frame. Stainless steel top plate with package guide to assure straight straps.
  • PC Board controlled, 110VAC motor, electric solenoids, and sensor controlled heater blade.
  • Signode® semi-automatic strapping machines can handle strap lengths of up to 6.5 km. This allows for continuous operation of your packaging process.
  • Latest technology in equipment combined with highest quality standards [EN-ISO 9001] and half a century of experience will grant you maximum availability and security.
  • Accommodates strapping widths of 1/4″, 3/8″ or 1/2″ plastic strapping on 8″ x 8″ or 9″ x 8″ ID core. (Specify when ordering).


  • Power Supply: 120 Volts, Single Phase
  • Strap Tension: 10-99 lbs.
  • Package Sizes: 3-1/2″ W x 2″ H (Minimum)

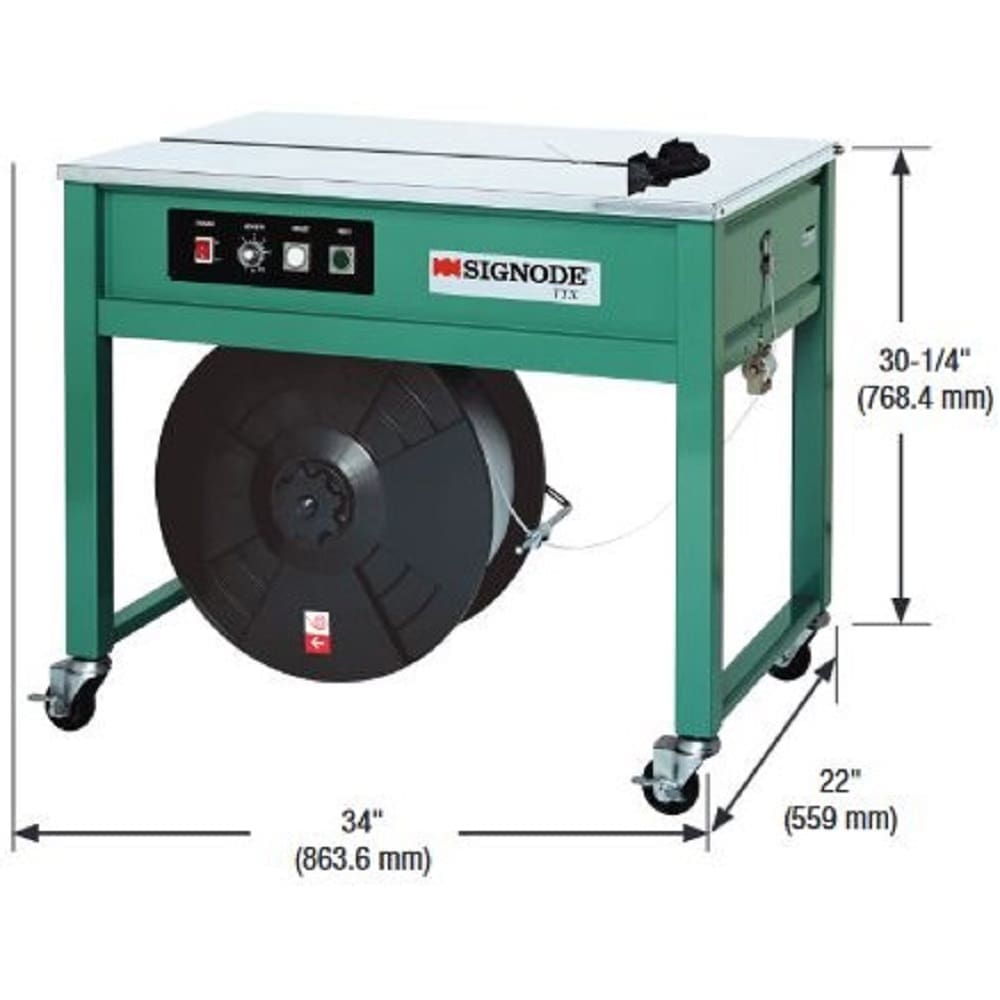

  • Machine Dimensions: 34″ L x 22″ W x 30-1/4″ H
  • Machine Weight: 185 lbs.
