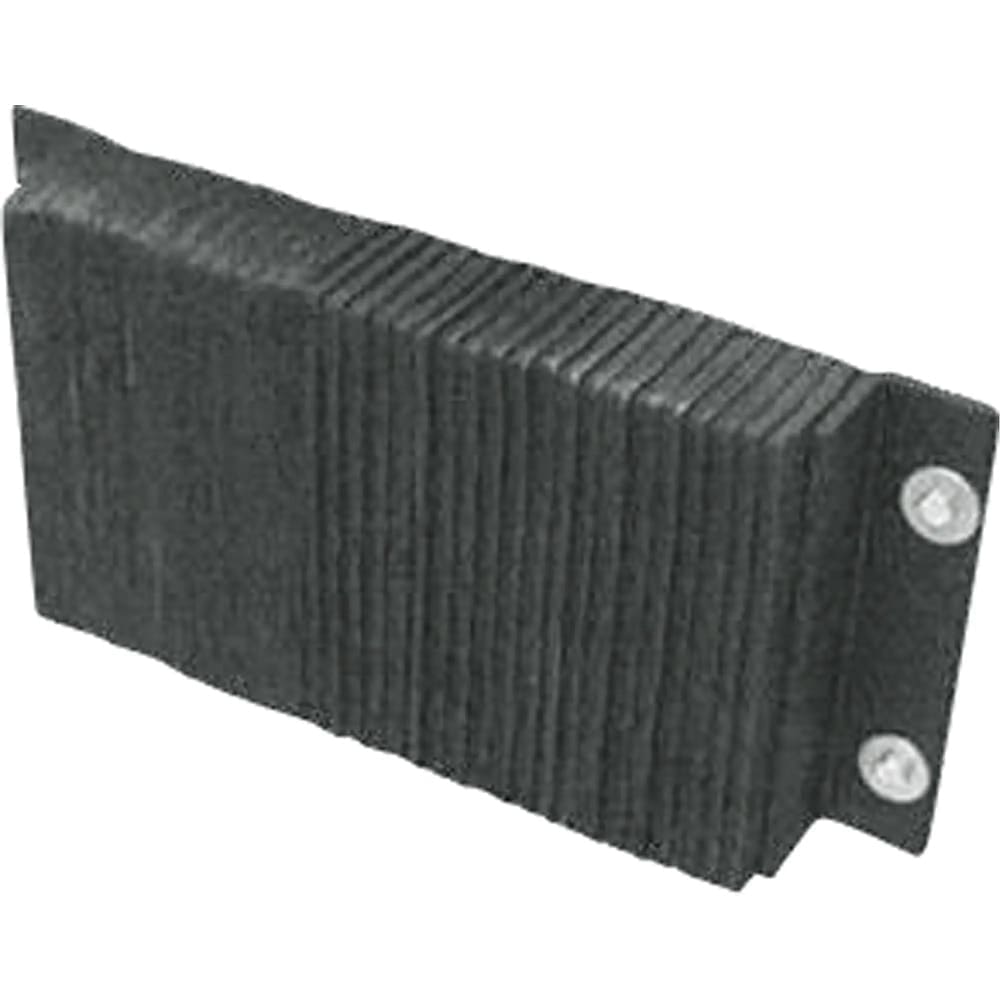

Laminated Rubber Dock Bumper – Horizontal, 12 x 4 x 10″

Manufacturer #: 24-1030 SKU: 51604 contact us for a quote

Add item to your cart; click « VIEW CART » then click « SUBMIT A QUOTE REQUEST »
or call 1.888.333.1929

$0.00

  • Fabric reinforced rubber pads cut from recycled truck tires.
  • Rubber pads laminated between steel angles and secured with 3/4” (19mm) rods
  • Bumper is fastened to dock surface with 3/8” (9.5mm) steel angles and/or flat plates depending on the model chosen.
  • Wall mounting hole size is 7/8” (22mm) diameter.
  • Available in 4” (102mm), 6” (152mm), 9” (229mm) projection.
  • Horizontal or vertical (vertical generally offers the best protection).
  • Width is based on Mounting Hole centre to centre.

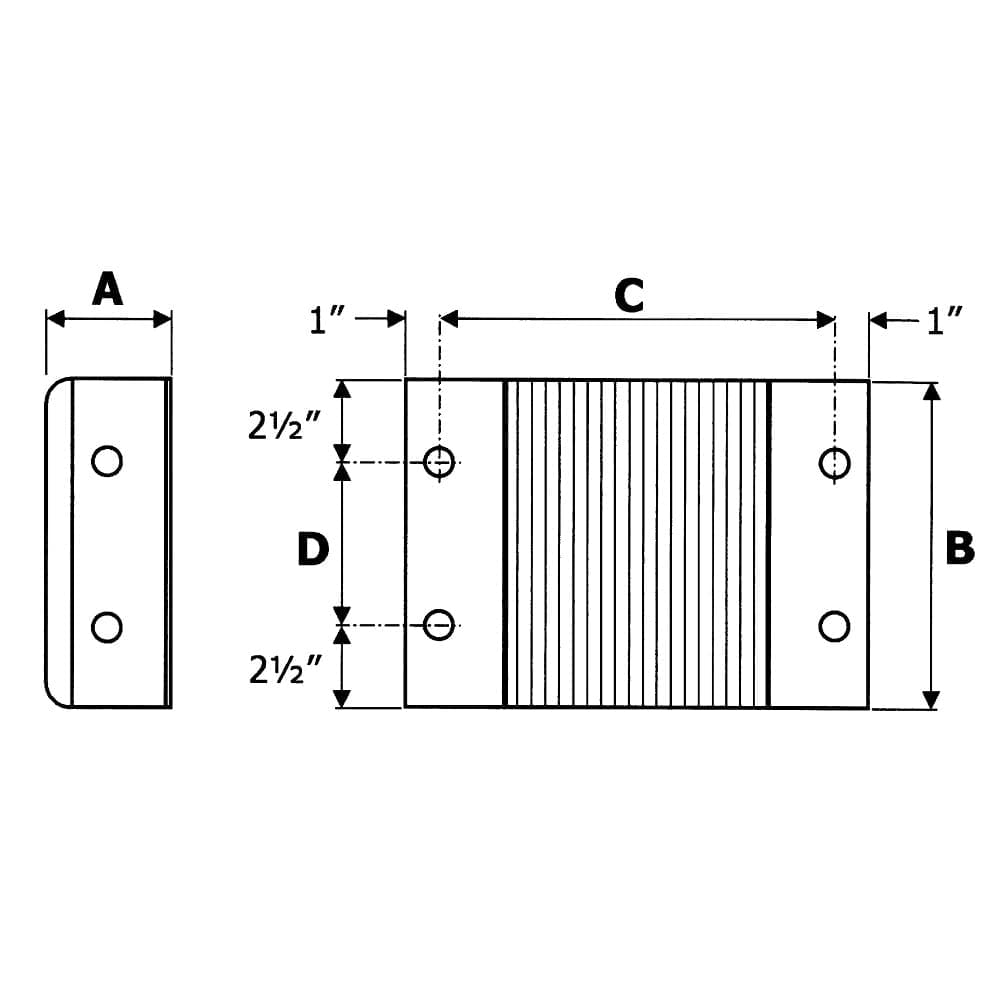

Specifications:

  • Overall Width: 12″ (C)
  • Depth: 4″ (A)
  • Overall Height: 10″ (B)
  • Weight: 27 lbs.

* All images displayed are for illustrative purposes only and may not be an exact representation of the product
